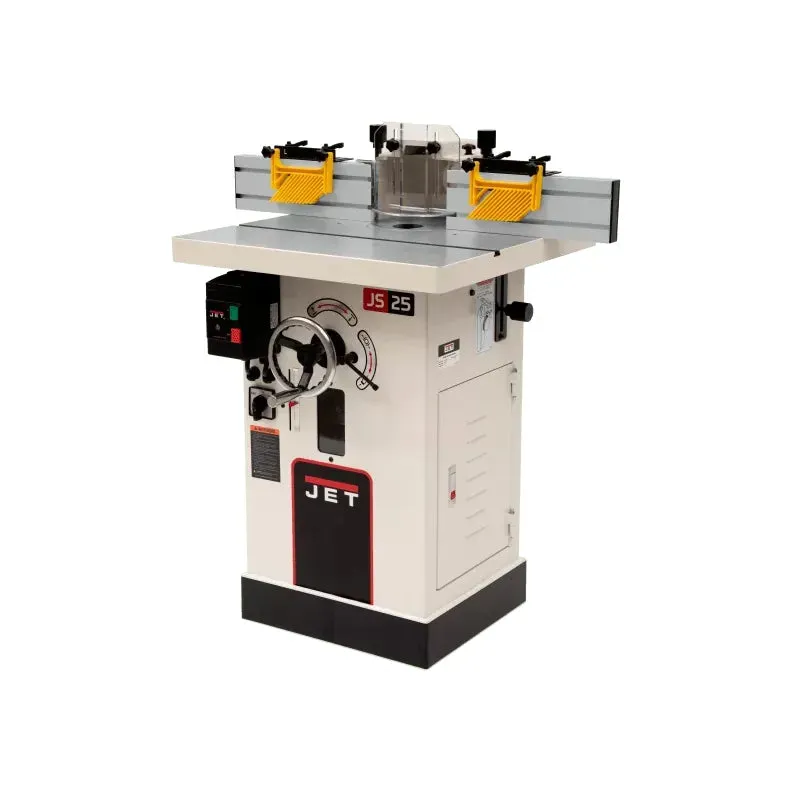

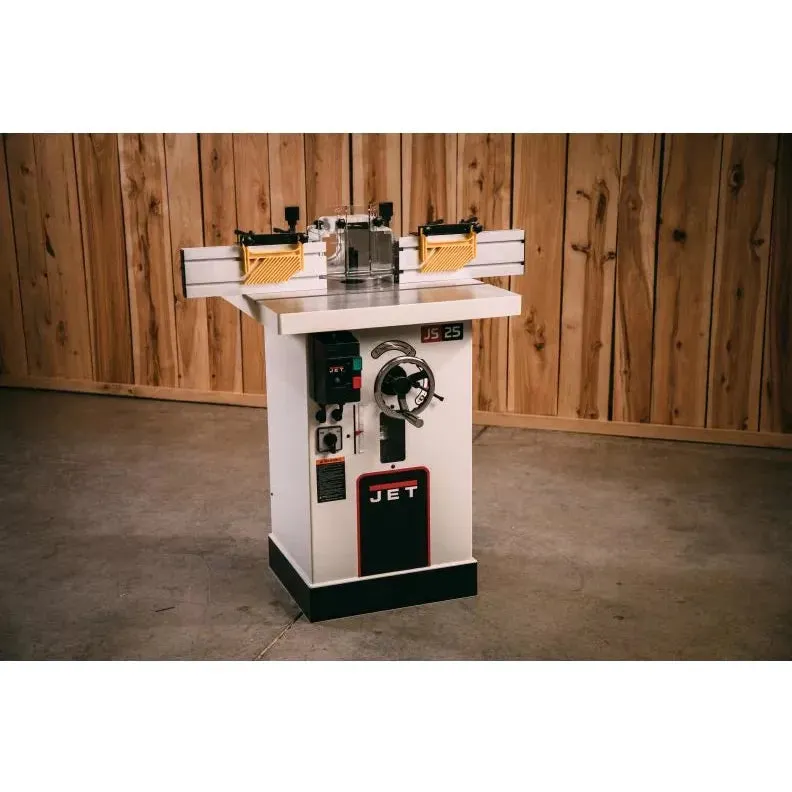

JET JWS-25X, Shaper, 3HP 1PH 230V, 1/2" & 3/4" Spindles JT9-708309

Product Description

The new model JWS-25X Shaper features a powerful 3HP motor with magnetic controls. The large 25”x 25-1/2” precision ground cast iron table provides plenty of support. Safe, easy cutter set up is assisted by a positive detent spindle lock. The independently adjustable left and right fence has a built in 4” dust port.

Features

Extra large chrome handwheel is conveniently located for fast, easy and accurate spindle height adjustments

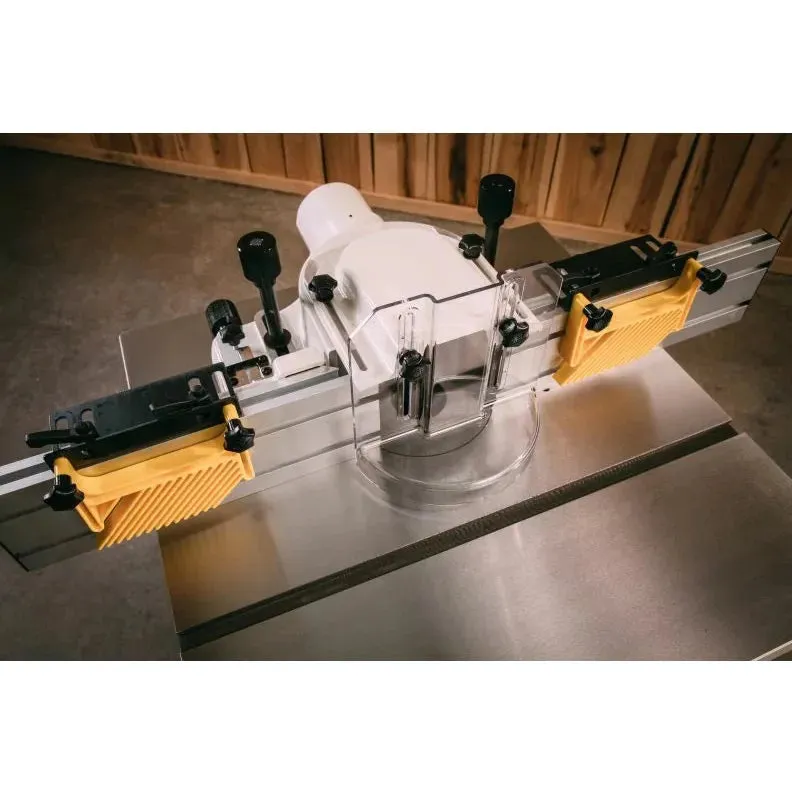

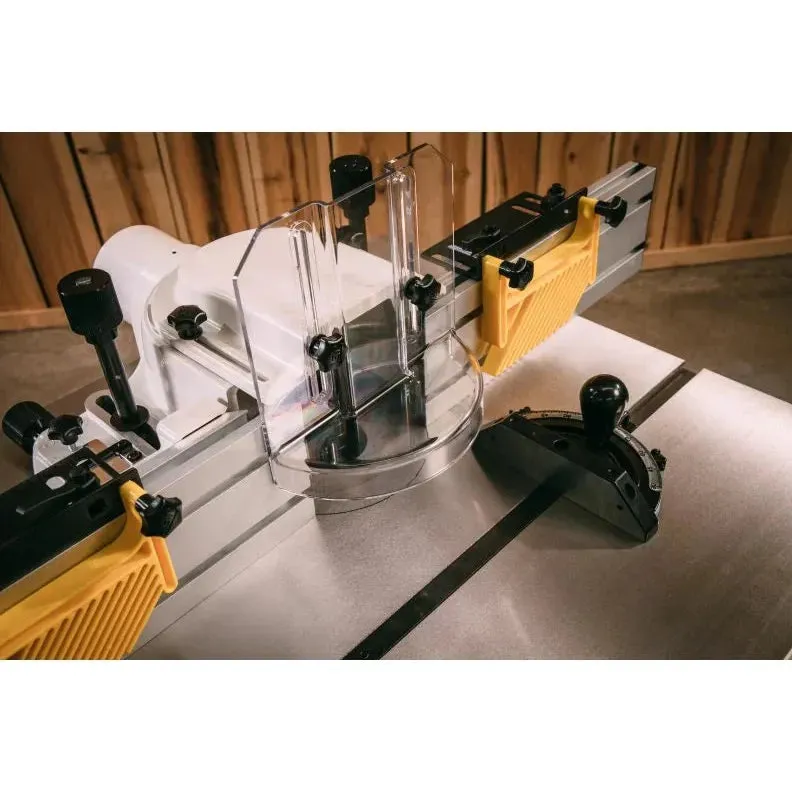

Extruded aluminum fence comes with T-Slots and 2 feather board hold-downs
Reversible spindle speeds for diverse shaping jobs

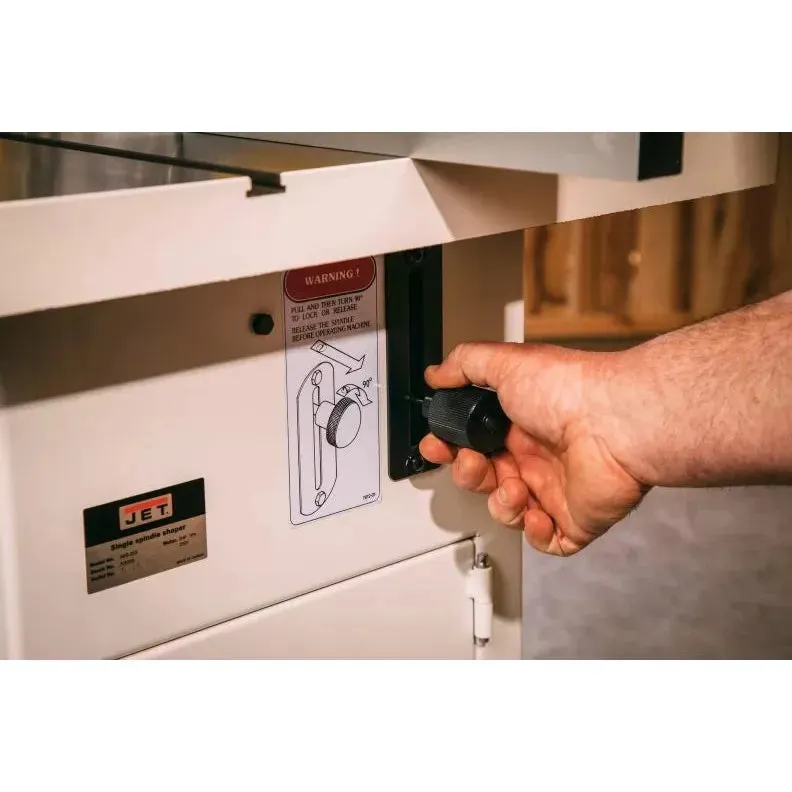

Spindle lock for safe and easy cutter set up
Starting Pins for irregular shaping
Two-speeds let you select the best speed and torque for different cutter diameters
V-belt transfers maximum power to the spindle

Specifications

Stock Number	JT9-708309
Dust Collection Minimum CFM Required (CFM)	600

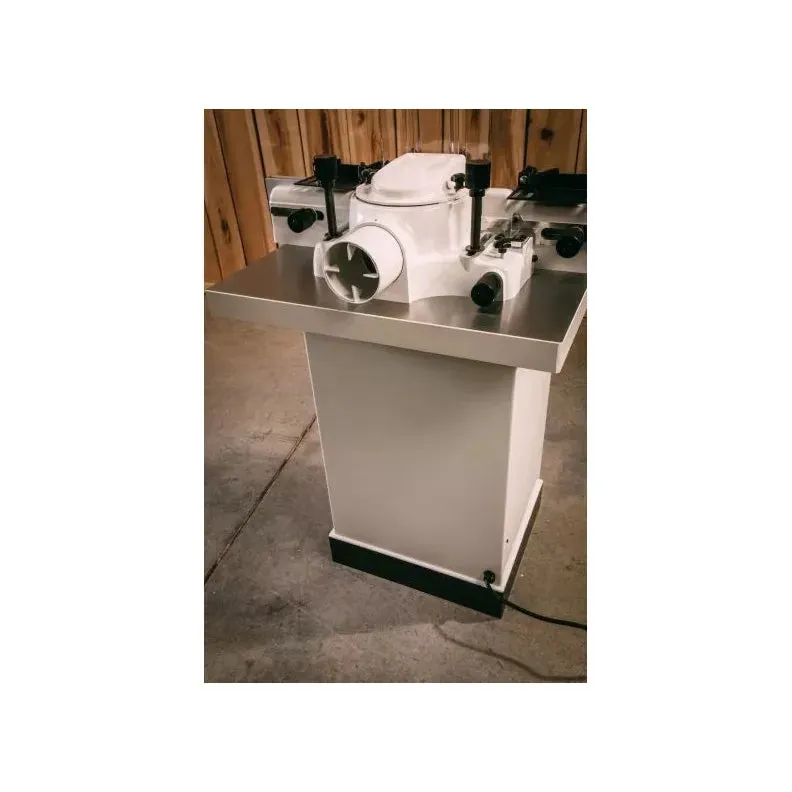

Dust Port Outside Diameter (In.)	4
Model Number	JWS-25X
Motor Amps	16
Motor Power (HP)	3
Motor Voltage (V.)	230
Prewired Voltage (V.)	230
Prop 65	Cancer and Reproductive Harm
Recommended Circuit Size (Amps.)	30
Spindle Travel (In.)	3-1/2
Table Height from Floor (In.)	33
Table Inserts (In.)	2
Table Opening Diameter (In.)	6-9/32
Table Size (L x W) (In.)	25-1/2 x 25
Warranty	5 Year
Gross Weight	381
